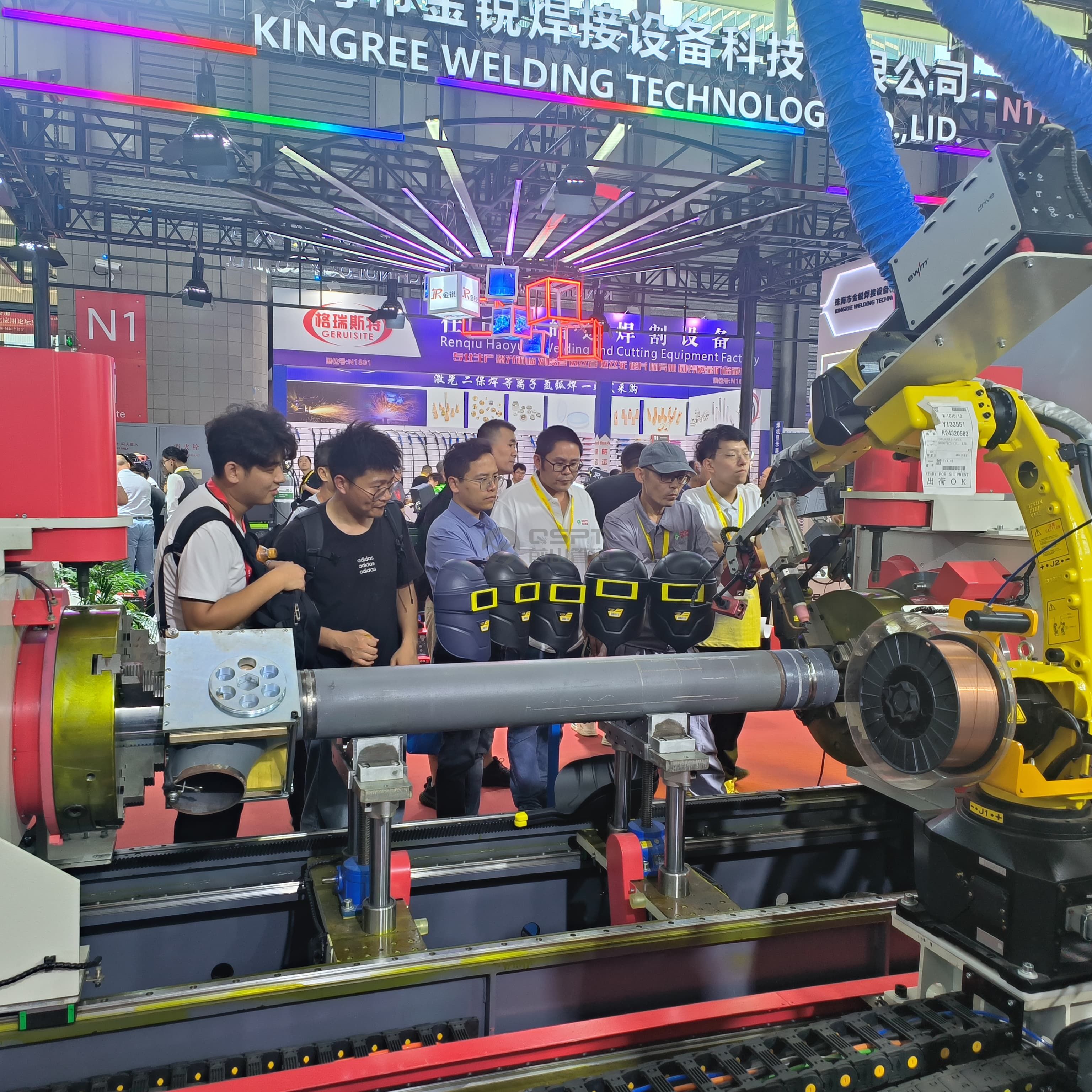

Pipeline prefabrication intelligent group welding center
model: SPIWC-12Aa
Equipment composition

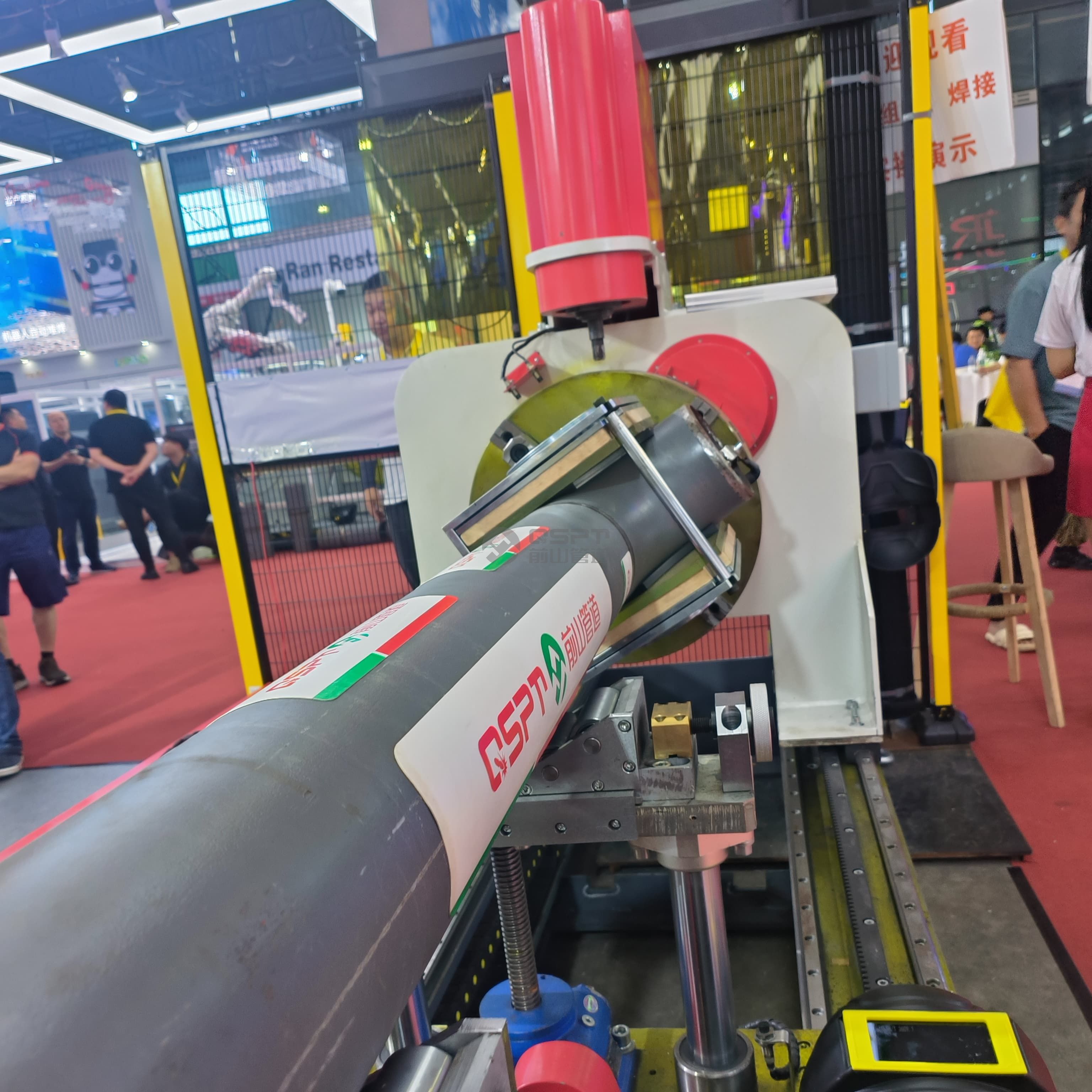

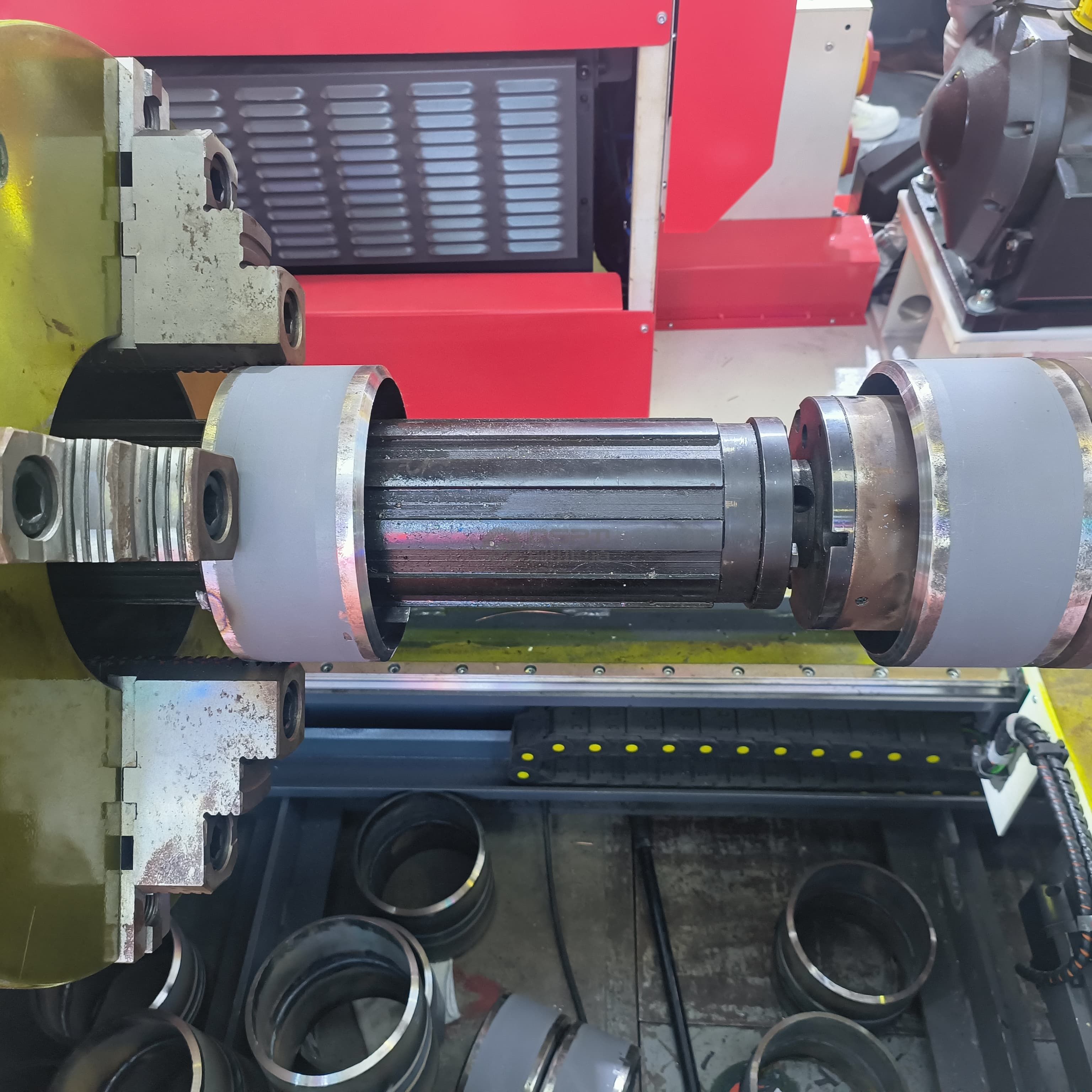

1. Variable displacement drive system (specially designed module chuck, can be equipped with dual systems)
2. Megmeet welding power supply
3. Center support car system
4. Flux conveying and recycling system
5. Welding mobile car system
6. Welding PLC control system

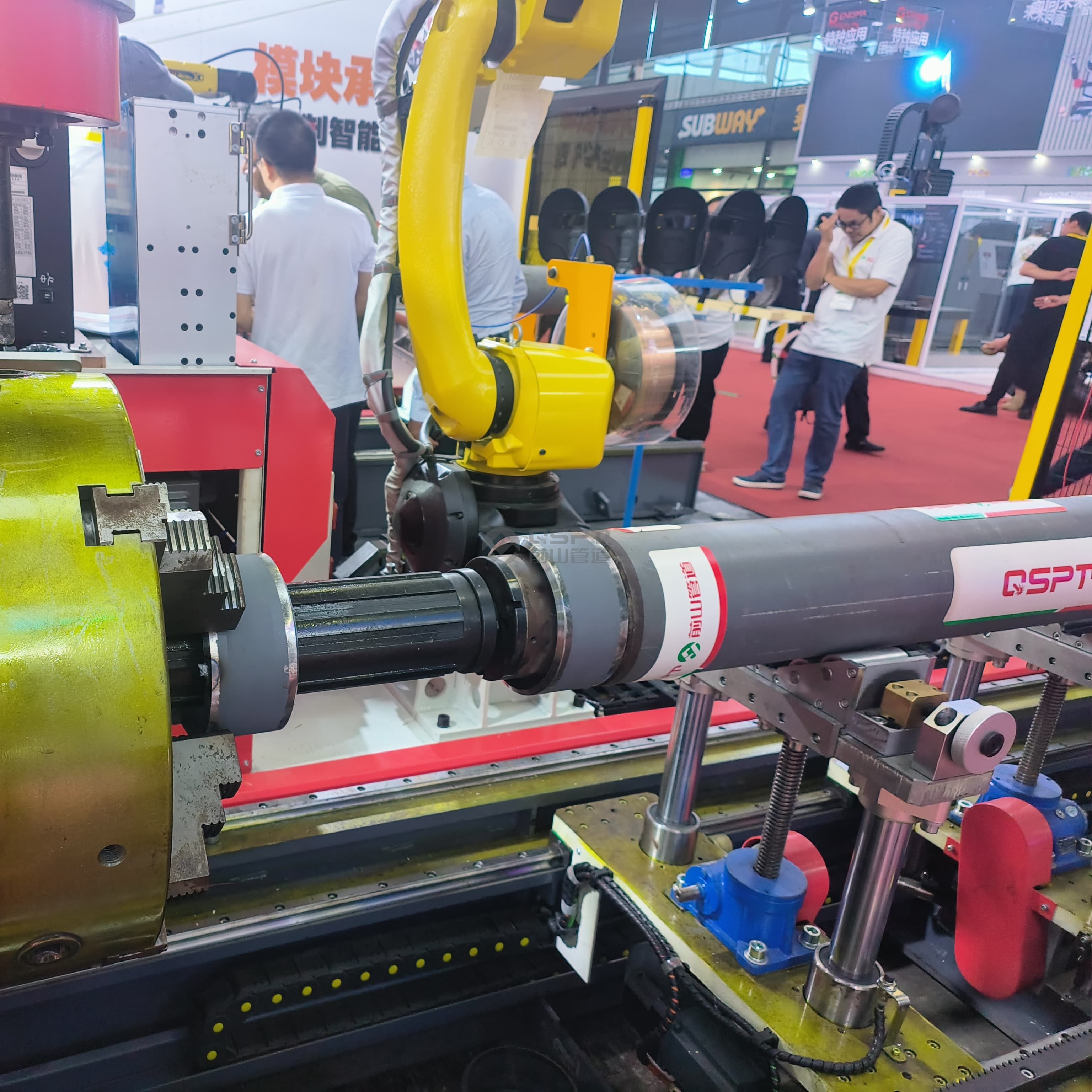

7. Fanuc welding robot
8. Visual Robot Control System
9. Binocular laser vision system
10.Steel structure box base
Преимущество:
Applicable production line
Modular load-bearing pipeline prefabrication intelligent production line
Applicable pipe sections
One dimensional pipe segment with fittings on one or both sides (supported by fitting modules)
Applicable process
Intelligent lifting of truss manipulator, special module chuck clamping, visual inspection+
Robot intelligent SAW filling and cover welding
Scope of application
DN50-300 (diameter) × 3-20mm (wall thickness)
Achieve goals
The intelligent assembly welding center for pipeline prefabrication is an important equipment used for assembly and welding operations in the pipeline prefabrication process. It integrates advanced automation, digitization, and intelligence technologies, significantly improving the efficiency and quality of pipeline prefabrication. The intelligent assembly welding center for pipeline prefabrication is mainly used for assembly and welding operations during the pipeline prefabrication process. It achieves high precision and efficiency in pipeline connection by accurately aligning the two ends or multiple parts of the pipeline and performing automated welding. This center is suitable for pipelines of various materials and specifications, such as carbon steel, stainless steel, alloy steel, etc., and is widely used in industrial fields such as petroleum, chemical, and natural gas.
